D-4

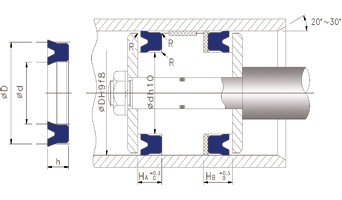

R ≦ 0.3
油缸内表面应作 0.4~3.2 μ mRmax (0.1~0.8 μ mRa)的研磨或抛光
| 项目 | Ød | ØD | h | HA |
|
D-4 |
5 | 12 | 5 | 6 |
|
D-4 |
11.2 | 17.2 | 11 | 12 |
|
D-4 |
12 | 18 | 6 | 7 |
|
D-4 |
14 | 22 | 11 | 12 |
|
D-4 |
15.8 | 20.8 | 3 | 4 |
|
D-4 |
115 | 130 | 12 | 13 |
|
D-4 |
3 | 4 | 1/2 | 0.55 |
|
D-4 |
3 | 4 | 3/8 | 0.413 |
|
D-4 |
31/2 | 41/8 | 5/16 |
0.344 |
|
D-4 |
31/4 | 41/2 | 1/2 | 0.55 |

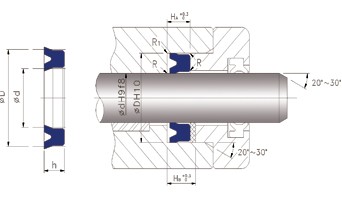

R ≦ 0.3 R1 ≦ 0.5
活塞杆表面应作 0.8~1.6 μ mRmax (0.2~0.4 μ mRa)的抛光
| 项目 | Ød | Ø D | h | HA |
|
D-4" |
31/4 | 41/2 | 3/8 | 0.413 |
|
D-4" |
37/8 | 41/4 | 3/16 | 0.207 |
|
D-4" |
4 | 5 | 3/8 | 0.413 |
|
D-4" |
411/16 | 51/16 | 3/16 | 0.207 |
|
D-4" |
43/8 | 5 | 5/16 | 0.344 |
|
D-4" |
45/8 | 53/16 | 1/2 | 0.55 |
|
D-4" |
51/4 | 57/8 | 5/16 | 0.344 |
|
D-4" |
57/16 | 513/16 | 3/16 | 0.207 |
|
D-4" |
63/16 | 69/16 | 3/16 | 0.207 |
|
D-4" |
63/8 | 7 | 5/16 | 0.344 |
