DinZing ® 密封件
活塞与活塞杆专用密封件
活塞专用密封件
活塞杆专用密封件
缓冲密封件
旋转密封件
往复用防尘密封件
往复用金属骨架防尘密封件

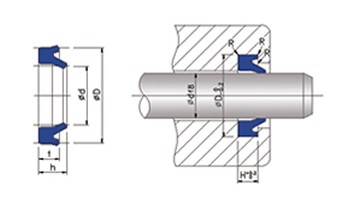

D-9
R ≦ 0.3
活塞杆表面应作0.8~1.6 μ mRmax (0.2~0.4 μ mRa)的抛光
|
项 目 |
Ø d |
Ø D |
t |
h |
H |
|
D-9 |
14 |
19 |
2 |
3.2 |
2.5 |
|
D-9 |
30 |
38 |
5 |
6.5 |
6 |
|
D-9 |
35 |
43 |
6 |
8 |
7 |
|
D-9 |
40 |
50 |
6 |
8 |
7 |
|
D-9 |
45 |
55 |
6 |
8 |
7 |
|
D-9 |
50 |
60 |
6 |
8 |
7 |
|
D-9 |
50 |
63 |
7 |
9.5 |
8 |
|
D-9 |
55 |
65 |
6 |
8 |
7 |
|
D-9 |
55 |
68 |
7 |
9.5 |
8 |
|
D-9 |
60 |
73 |
7 |
9.5 |
8 |
|
D-9 |
65 |
78 |
7 |
9.5 |
8 |
|
D-9 |
70 |
80 |
6 |
8 |
7 |
|
D-9 |
70 |
83 |
7 |
9.5 |
8 |
|
D-9 |
75 |
88 |
7 |
9.5 |
8 |
|
D-9 |
80 |
93 |
7 |
9.5 |
8 |
|
D-9 |
85 |
98 |
7 |
9.5 |
8 |
|
项 目 |
Ø d |
Ø D |
t |
h |
H |
|
D-9 |
90 |
103 |
7 |
9.5 |
8 |
|
D-9 |
92 |
107.1 |
6.1 |
9 |
7 |
|
D-9 |
95 |
108 |
7 |
9.5 |
8 |
|
D-9 |
100 |
113 |
7 |
9.5 |
8 |
|
D-9 |
105 |
118 |
7 |
9.5 |
8 |
|
D-9 |
108 |
123 |
6.5 |
10.3 |
7.5 |
|
D-9 |
110 |
123 |
7 |
9.5 |
8 |
|
D-9 |
120 |
133 |
7 |
9.5 |
8 |
|
D-9 |
125 |
138 |
7 |
9.5 |
8 |
|
D-9 |
130 |
143 |
7 |
9.5 |
8 |
|
D-9 |
136 |
149 |
7 |
9.5 |
8 |
|
D-9 |
140 |
155 |
6.5 |
10.3 |
7.5 |
|
D-9 |
155 |
170 |
6.5 |
10.3 |
7.5 |
|
D-9 |
160 |
173 |
7 |
9.5 |
8 |
|
D-9 |
170 |
183 |
7 |
9.5 |
8 |
|
D-9 |
190 |
203 |
7 |
9.5 |
8 |
