D-2

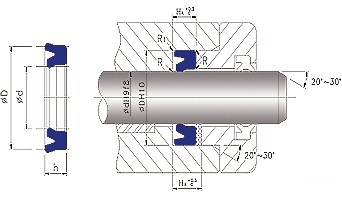

R ≦ 0.3 R1≦0.5
油缸内表面应作0.8~1.6 μ mRmax (0.2~0.4 μ mRa)的研磨或抛光
| 项目 | Ød | ØD | h | HA |
|
D-2
|
6 | 12 | 5 | 5.6 |
|
D-2
|
10 | 16 | 4.5 | 5.2 |
|
D-2
|
10 | 20 | 8 | 9 |
|
D-2
|
11.3 | 16 | 3.5 | 4.5 |
|
D-2
|
12 | 20 | 5.8 | 6.3 |
|
D-2
|
12 | 22 | 8 | 9 |
|
D-2
|
14 | 22 | 5 | 5.7 |
|
D-2
|
14 | 22 | 5.7 | 6.3 |
|
D-2
|
14 | 24 | 6 |
7 |
|
D-2
|
15 | 21 | 5 |
5.7 |
|
D-2
|
15 | 23 | 5 |
5.7 |
|
D-2
|
16 | 22 | 5 |
5.7 |
|
D-2
|
16 | 24 | 5 |
5.7 |
|
D-2
|
16 | 24 | 5.7 |
6.3 |
|
D-2
|
17 | 25 | 10 |
11 |
|
D-2
|
18 | 26 | 5 |
5.7 |
|
D-2
|
18 | 26 | 6 |
7 |
|
D-2
|
18 | 26 | 8 |
9 |
|
D-2
|
18 | 28 | 8.2 |
9.2 |
|
D-2
|
19 | 27 | 6 |
7 |
|
D-2
|
20 | 25 | 5 |
5.7 |
|
D-2
|
20 | 26 | 5 |
5.7 |
|
D-2
|
20 | 27 | 6 |
7 |
|
D-2
|
20 | 28 | 5 |
5.7 |
|
D-2
|
20 | 28 | 7.2 |
8 |
|
D-2
|
20 | 30 | 6 |
7 |
|
D-2
|
20 | 30 | 8 |
9 |
|
D-2
|
20 | 33 | 10 |
11 |
|
D-2
|
21 | 29.5 | 5 |
5.7 |
|
D-2
|
22 | 30 | 5 |
5.7 |
|
D-2
|
22 | 30 | 8 |
9 |
|
D-2
|
22.4 | 30 | 5.2 |
5.7 |
|
D-2
|
22.7 | 33 | 5.3 |
6 |
|
D-2
|
23 | 35 | 6 |
7 |
|
D-2
|
25 | 32 | 5 |
5.7 |
|
D-2
|
25 | 33 | 5 |
5.7 |
|
D-2
|
25 | 33 | 5.8 |
6.3 |
|
D-2
|
25 | 33 | 10 |
11 |
|
D-2
|
28 | 35.5 | 5 |
5.7 |
|
D-2
|
28 | 36 | 8 |
9 |
|
D-2
|
28 | 38 | 10 |
11 |
|
D-2
|
30 | 38 | 5.7 |
6.3 |
|
D-2
|
30 | 40 | 6 |
7 |
|
D-2
|
30 | 40 | 7 |
8 |
|
D-2
|
30 | 42 | 12 |
13 |
|
D-2
|
30 | 43 | 10 |
11 |
|
D-2
|
30 | 45 | 9 |
10 |
|
D-2
|
30 | 47 | 7 |
8 |
|
D-2
|
30 | 48 | 7 |
8 |
|
D-2
|
32 | 40 | 5.7 |
6.3 |
|
D-2
|
32 | 40 | 6 |
7 |
|
D-2
|
32 | 40 | 8 |
9 |
|
D-2
|
32 | 42 | 6 |
7 |
|
D-2
|
32 | 45 | 10 |
11 |
|
D-2
|
32 | 47 | 10 |
11 |
|
D-2
|
32 | 48 | 10 |
11 |
|
D-2
|
33 | 43 | 10 |
11 |
|
D-2
|
35 | 42 | 7 |
8 |
|
D-2
|
35 | 43 | 6.3 |
7 |
|
D-2
|
35 | 45 | 6 |
7 |
|
D-2
|
35 | 45 | 7 |
8 |
|
D-2
|
35 | 45 | 10 |
11 |
|
D-2
|
35 | 50 | 9 |
10 |
|
D-2
|
35.5 | 45 | 6.5 |
7.5 |
|
D-2
|
36 | 44 | 5.7 |
6.3 |
|
D-2
|
36 | 46 | 10 |
11 |
|
D-2
|
37 | 47 | 6 |
7 |
|
D-2
|
38.08 | 57.15 | 12.7 |
13.9 |
|
D-2
|
39 | 58 | 10 |
11 |
|
D-2
|
40 | 50 | 6 |
7 |
|
D-2
|
40 | 50 | 7 |
8 |
|
D-2
|
40 | 55 | 9 |
10 |
|
D-2
|
40 | 55 | 10 |
11 |
|
D-2
|
42 | 52 | 7.3 |
8 |
|
D-2
|
42 | 58 | 13 |
14 |
|
D-2
|
45 | 53 | 10 |
11 |
|
D-2
|
45 | 55 | 5.7 |
6.3 |
|
D-2
|
45 | 55 | 6 |
7 |
|
D-2
|
45 | 55 | 6.5 |
7.5 |
|
D-2
|
45 | 55 | 7 |
8 |
|
D-2
|
45 | 55 | 8 |
9 |
|
D-2
|
45 | 60 | 9 |
10 |
|
D-2
|
45 | 60 | 10 |
11 |
|
D-2
|
48 | 58 | 10 |
11 |
|
D-2
|
48 | 63 | 9 |
10 |
|
D-2
|
50 | 60 | 6 |
7 |
|
D-2
|
50 | 60 | 7 |
8 |
|
D-2
|
50 | 60 | 8 |
9 |
|
D-2
|
50 | 63 | 8 |
9 |
|
D-2
|
50 | 63 | 10 |
11 |
|
D-2
|
50 | 65 | 9 |
10 |
|
D-2
|
50 | 65.5 | 6 |
7 |
|
D-2
|
52 | 62 | 10 |
11 |
|
D-2
|
53 | 70 | 9 |
10 |
|
D-2
|
55 | 63 | 12 |
13 |
|
D-2
|
55 | 65 | 6 |
7 |
|
D-2
|
55 | 65 | 7 |
8 |
|
D-2
|
55 | 68 | 10 |
11 |
|
D-2
|
55 | 70 | 9 |
10 |
|
D-2
|
55 | 75 | 12 |
13 |
|
D-2
|
56 | 70 | 11.5 |
12.5 |
|
D-2
|
57 | 84 | 16 |
17 |
|
D-2
|
57.15 | 73.03 | 9.7 |
10.5 |
|
D-2
|
60 | 68 | 6.3 |
7 |
|
D-2
|
60 | 70 | 6 |
7 |
|
D-2
|
60 | 70 | 7.5 |
8.5 |
|
D-2
|
60 | 70 | 10 |
11 |
|
D-2
|
60 | 70 | 12 |
13 |
|
D-2
|
60 | 73 | 10 |
11 |
|
D-2
|
60 | 75 | 9 |
10 |
|
D-2
|
60 | 76 | 10 |
11 |
|
D-2
|
60 | 80 | 12 |
13 |
|
D-2
|
63 | 73 | 12 |
13 |
|
D-2
|
63.45 | 76.25 | 9.5 |
10.5 |
|
D-2
|
65 | 75 | 6 |
7 |
|
D-2
|
65 | 75 | 8 |
9 |
|
D-2
|
65 | 78 | 10 |
11 |
|
D-2
|
65 | 80 | 9 |
10 |
| 项目 | Ød | ØD | h | HA |
|
D-2
|
65 | 80 | 12 | 13 |
|
D-2
|
65 | 85 | 12 | 13 |
|
D-2
|
67 | 84 | 16 | 17 |
|
D-2
|
70 | 80 | 6 | 7 |
|
D-2
|
70 | 82 | 8.7 | 9.6 |
|
D-2
|
70 | 83 | 10 | 11 |
|
D-2
|
70 | 83 | 13 | 14 |
|
D-2
|
70 | 85 | 9 | 10 |
|
D-2
|
70 | 90 | 10 | 11 |
|
D-2
|
70 | 90 | 12 | 13 |
|
D-2
|
72 | 87 | 9 | 10 |
|
D-2
|
75 | 85 | 6 | 7 |
|
D-2
|
75 | 85 | 7 | 8 |
|
D-2
|
75 | 88 | 10 | 11 |
|
D-2
|
75 | 90 | 9 | 10 |
|
D-2
|
75 | 95 | 10 | 11 |
|
D-2
|
75 | 95 | 12 | 13 |
|
D-2
|
75 | 95 | 13 | 14 |
|
D-2
|
76.5 | 90.5 | 10 | 11 |
|
D-2
|
77 | 87 | 12 | 13 |
|
D-2
|
80 | 90 | 8 | 9 |
|
D-2
|
80 | 93 | 10 | 11 |
|
D-2
|
80 | 93 | 13 | 14 |
|
D-2
|
80 | 95 | 9 | 10 |
|
D-2
|
80 | 95 | 10 | 11 |
|
D-2
|
80 | 100 | 12 | 13 |
|
D-2
|
85 | 93 | 11 | 12 |
|
D-2
|
85 | 100 | 9 | 10 |
|
D-2
|
85 | 100 | 10 | 11 |
|
D-2
|
85 | 100 | 13 | 14 |
|
D-2
|
85 | 105 | 12 | 13 |
|
D-2
|
85 | 105 | 13 | 14 |
|
D-2
|
86 | 102 | 16 | 17 |
|
D-2
|
90 | 98 | 6.3 | 7 |
|
D-2
|
90 | 100 | 13 | 14 |
|
D-2
|
90 | 102 | 8.7 | 9.6 |
|
D-2
|
90 | 105 | 9 | 10 |
|
D-2
|
90 | 105 | 10 | 11 |
|
D-2
|
90 | 110 | 12 | 13 |
|
D-2
|
90 | 110 | 13 | 14 |
|
D-2
|
95 | 110 | 9 | 10 |
|
D-2
|
95 | 110 | 10 | 11 |
|
D-2
|
95 | 110 | 12 | 13 |
|
D-2
|
95 | 110 | 13.5 | 14.5 |
|
D-2
|
95 | 115 | 12 | 13 |
|
D-2
|
95 | 115 | 13.5 | 14.5 |
|
D-2
|
97 | 105 | 13 | 14 |
|
D-2
|
98 | 113 | 9 | 10 |
|
D-2
|
99 | 109 | 12 | 13 |
|
D-2
|
100 | 113 | 12.5 | 13.5 |
|
D-2
|
100 | 115 | 9 | 10 |
|
D-2
|
100 | 115 | 10 | 11 |
|
D-2
|
100 | 115 | 13.5 | 14.5 |
|
D-2
|
100 | 120 | 12 | 13 |
|
D-2
|
105 | 113 | 11 | 12 |
|
D-2
|
105 | 120 | 9 | 10 |
|
D-2
|
105 | 125 | 12 | 13 |
|
D-2
|
110 | 120 | 6 | 7 |
|
D-2
|
110 | 125 | 9 | 10 |
|
D-2
|
110 | 125 | 10 | 11 |
|
D-2
|
110 | 130 | 10 | 11 |
|
D-2
|
110 | 130 | 12 | 13 |
|
D-2
|
110 | 130 | 13 | 14 |
|
D-2
|
112 | 125 | 9 | 10 |
|
D-2
|
115 | 127 | 14 | 15 |
|
D-2
|
115 | 130 | 9 | 10 |
|
D-2
|
115 | 135 | 12 | 13 |
|
D-2
|
115 | 135 | 16 | 17 |
|
D-2
|
118 | 133 | 9 | 10 |
|
D-2
|
118 | 134 | 16 | 17 |
|
D-2
|
120 | 135 | 9 | 10 |
|
D-2
|
120 | 140 | 12 | 13 |
|
D-2
|
125 | 140 | 9 | 10 |
|
D-2
|
130 | 150 | 9 | 10 |
|
D-2
|
130 | 150 | 12 | 13 |
|
D-2
|
130 | 150 | 16 | 17 |
|
D-2
|
140 | 150 | 6 | 7 |
|
D-2
|
140 | 155 | 9.5 | 10.5 |
|
D-2
|
140 | 155 | 10 | 11 |
|
D-2
|
140 | 160 | 16 | 17 |
|
D-2
|
150 | 165 | 9 | 10 |
|
D-2
|
150 | 170 | 12 | 13 |
|
D-2
|
160 | 180 | 12 | 13 |
|
D-2
|
160 | 185 | 16 | 17 |
|
D-2
|
165 | 180 | 9 | 10 |
|
D-2
|
170 | 195 | 15 | 16 |
|
D-2
|
170 | 195 | 16 | 17 |
|
D-2
|
175 | 195 | 17 | 18 |
|
D-2
|
180 | 190 | 14 | 15 |
|
D-2
|
180 | 195 | 12 | 13 |
|
D-2
|
180 | 200 | 12 | 13 |
|
D-2
|
180 | 205 | 15 | 16 |
|
D-2
|
180 | 205 | 16 | 17 |
|
D-2
|
200 | 225 | 19 | 20 |
|
D-2
|
210 | 230 | 12 | 13 |
|
D-2
|
220 | 250 | 19 | 20 |
|
D-2
|
280 | 310 | 19 | 20 |
|
D-2
|
320 | 340 | 15 | 16 |
|
D-2"
|
3/4 | 340 | 3/16 | 0.207 |
|
D-2"
|
7/8 | 11/8 | 1/8 | 0.138 |
|
D-2"
|
13/16 | 11/16 | 1/8 | 0.138 |
|
D-2"
|
11/2 | 13/4 | 1/4 | 0.275 |
|
D-2"
|
11/2 | 13/4 | 3/16 | 0.207 |
|
D-2"
|
11/2 | 17/8 | 1/4 | 0.275 |
|
D-2"
|
13/16 | 111/16 | 5/16 | 0.344 |
|
D-2"
|
13/4 | 21/4 | 5/16 | 0.344 |
|
D-2"
|
13/4 | 21/8 | 1/4 | 0.275 |
|
D-2"
|
15/8 | 2 | 5/16 | 0.344 |
|
D-2"
|
2 | 21/2 | 3/8 | 0.413 |
|
D-2"
|
21/2 | 3 | 3/8 | 0.413 |
|
D-2"
|
21/4 | 27/8 | 1/2 | 0.55 |
|
D-2"
|
23/8 | 3 | 3/8 | 0.413 |
|
D-2"
|
3 | 31/2 | 3/8 | 0.413 |
|
D-2"
|
31/2 | 4 | 3/8 | 0.413 |
|
D-2"
|
31/4 | 33/4 | 3/8 | 0.413 |
|
D-2"
|
33/8 | 4 | 5/8 | 0.688 |
|
D-2"
|
61/2 | 71/2 | 5/8 | 0.688 |
