DinZing ® 密封件
活塞与活塞杆专用密封件
活塞专用密封件
活塞杆专用密封件
缓冲密封件
旋转密封件
往复用防尘密封件
往复用金属骨架防尘密封件
D-3

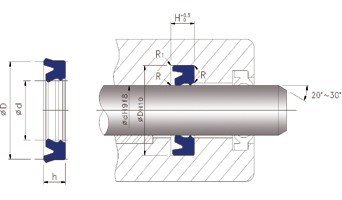

R ≦ 0.3 R1≦0.5
油缸内表面应作0.8~1.6 μ mRmax (0.2~0.4 μ mRa)的研磨或抛光
| 项目 | Ød | ØD | h | HA |
|
D-3
|
8 | 20 | 8 | 9 |
|
D-3
|
13 | 20 | 5 | 6 |
|
D-3
|
15 | 25 | 9 | 10 |
|
D-3
|
16 | 22 | 4 | 4.5 |
|
D-3
|
16 | 22 | 5 | 6 |
|
D-3
|
18 | 24 | 8 | 9 |
|
D-3
|
18 | 25 | 5 | 6 |
|
D-3
|
18 | 26 | 8 | 9 |
|
D-3
|
18 | 28 | 8 |
9 |
|
D-3
|
20 | 28 | 5.7 |
6.3 |
|
D-3
|
20 | 30 | 8 |
9 |
|
D-3
|
22 | 28 | 4.5 |
6.3 |
|
D-3
|
22 | 30 | 5.7 |
6.3 |
|
D-3
|
22 | 32 | 7 | 8 |
|
D-3
|
25 | 33 | 6.3 |
7 |
|
D-3
|
25 | 33 | 6.8 |
7.5 |
|
D-3
|
25 | 35 | 7 |
8 |
|
D-3
|
25 | 35 | 7.3 |
8 |
|
D-3
|
25 | 35 | 8 |
9 |
|
D-3
|
25 | 35 | 10 |
11 |
|
D-3
|
25.4 | 31.75 | 5.69 |
6.35 |
|
D-3
|
26 | 36 | 10 |
11 |
|
D-3
|
28 | 34 | 3.4 |
4 |
|
D-3
|
28 | 36 | 5.6 |
6.3 |
|
D-3
|
28 | 38 | 7.3 |
8 |
|
D-3
|
28 | 40 | 6 |
7 |
|
D-3
|
30 | 36 | 6.3 |
7 |
|
D-3
|
30 | 37 | 5 |
6 |
|
D-3
|
30 | 38 | 5.7 |
6.3 |
|
D-3
|
30 | 38 | 6.3 |
7 |
|
D-3
|
30 | 38 | 8 |
9 |
|
D-3
|
30 | 40 | 6 |
7 |
|
D-3
|
30 | 40 | 7.3 |
8 |
|
D-3
|
30 | 40 | 8 |
9 |
|
D-3
|
30 | 40 | 9 |
10 |
|
D-3
|
30 | 40 | 10 |
11 |
|
D-3
|
30 | 50 | 11 |
12 |
|
D-3
|
32 | 40 | 6 |
7 |
|
D-3
|
32 | 40 | 7.7 |
9 |
|
D-3
|
32 | 42 | 5.7 |
6.3 |
|
D-3
|
32 | 47 | 10 |
11 |
|
D-3
|
35 | 43 | 8.3 |
9 |
|
D-3
|
35 | 45 | 6 |
7 |
|
D-3
|
35 | 45 | 7 |
8 |
|
D-3
|
35 | 45 | 10 |
11 |
|
D-3
|
35 | 51 | 9 |
10 |
|
D-3
|
35.5 | 45 | 6 |
7 |
|
D-3
|
36 | 44 | 5.7 |
6.3 |
|
D-3
|
36 | 46 | 7.3 |
8 |
|
D-3
|
37 | 47 | 8 |
9 |
|
D-3 |
37 | 47 | 10 |
11 |
|
D-3
|
38 | 48 | 8 |
9 |
|
D-3
|
38 | 48 | 10 |
11 |
|
D-3
|
38 | 58 | 10 |
11 |
|
D-3
|
40 | 48 | 5.7 |
6.3 |
|
D-3
|
40 | 50 | 7.3 |
8 |
|
D-3
|
40 | 50 | 8 | 9 |
|
D-3
|
40 | 50 | 10 |
11 |
|
D-3
|
40 | 52.75 | 8 |
9 |
|
D-3
|
40 | 55 | 9 |
10 |
|
D-3
|
40 | 55 | 10 |
11 |
|
D-3
|
42 | 50 | 5.7 |
6.3 |
|
D-3
|
45 | 53 | 7 |
8 |
|
D-3
|
45 | 55 | 7 |
8 |
|
D-3
|
45 | 55 | 7.3 |
8 |
|
D-3
|
45 | 55 | 10 |
11 |
|
D-3
|
45 | 60 | 10 |
11 |
|
D-3
|
45 | 60 | 11.4 |
12.5 |
|
D-3
|
50 | 58 | 8 |
9 |
|
D-3
|
50 | 60 | 7.3 |
8 |
|
D-3
|
50 | 60 | 8 |
9 |
|
D-3
|
50 | 60 | 9 |
10 |
|
D-3
|
50 | 60 | 10 |
11 |
|
D-3
|
50 | 65 | 9 |
10 |
|
D-3
|
50 | 65 | 10.9 |
12 |
|
D-3
|
50 | 65 | 11.4 |
12.5 |
|
D-3
|
52 | 62 | 10 |
11 |
|
D-3
|
55 | 65 | 6 |
7 |
|
D-3
|
55 | 65 | 10 |
11 |
|
D-3
|
55 | 65 | 12 |
13 |
|
D-3
|
55 | 70 | 11.4 | 12.5 |
|
D-3
|
56 | 66 | 7.3 |
8 |
|
D-3
|
56 | 71 | 12.5 |
13.5 |
|
D-3
|
57 | 67 | 8 |
9 |
|
D-3
|
60 | 68 | 8 |
9 |
|
D-3
|
60 | 68 | 13.5 |
14.5 |
|
D-3
|
60 | 70 | 7.3 |
8 |
|
D-3
|
60 | 70 | 10 |
11 |
|
D-3
|
60 | 70 | 12 |
13 |
|
D-3
|
60 | 72 | 9 |
10 |
|
D-3
|
60 | 78 | 10 |
11 |
|
D-3
|
63 | 73 | 12 |
13 |
|
D-3
|
63 | 73 | 13 |
14 |
|
D-3
|
63 | 78 | 10 |
11 |
|
D-3
|
63 | 78 | 11.4 |
12.5 |
|
D-3
|
63 | 78 | 12.5 |
13.5 |
|
D-3
|
65 | 75 | 7 |
8 |
|
D-3
|
65 | 75 | 11.5 |
12.5 |
|
D-3
|
65 | 77 | 9 |
10 |
|
D-3
|
70 | 80 | 12 |
13 |
|
D-3
|
70 | 85 | 11.4 |
12.5 |
|
D-3
|
75 | 90 | 10 |
11 |
|
D-3
|
75 | 95 | 12.5 |
13.5 |
|
D-3
|
78 | 86 | 13.5 |
14.5 |
|
D-3
|
80 | 88 | 8 |
9 |
|
D-3
|
80 | 88 | 11.5 |
12.5 |
|
D-3
|
80 | 95 | 11.4 |
12.5 |
|
D-3
|
80 | 95 | 11.8 |
13 |
|
D-3
|
85 | 93 | 11.5 |
12.5 |
|
D-3
|
90 | 98 | 8.5 |
9.5 |
|
D-3
|
90 | 98 | 11.5 |
12.5 |
|
D-3
|
90 | 100 | 10.5 |
11.5 |
|
D-3
|
90 | 105 | 11.4 |
12.5 |
|
D-3
|
95 | 103 | 11.5 |
12.5 |
|
D-3
|
97 | 105 | 11.5 |
12.5 |
|
D-3
|
97 | 105 | 13.5 |
14.5 |
|
D-3
|
100 | 108 | 11.5 |
12.5 |
|
D-3
|
100 | 110 | 15 |
16 |
|
D-3
|
100 | 115 | 11.8 |
13 |
|
D-3
|
100 | 120 | 15 |
16 |
|
D-3
|
100 | 120 | 16 |
17 |
|
D-3
|
105 | 113 | 11 |
12 |
| 项目 | Ød | ØD | h | HA |
|
D-3
|
110 | 118 | 11.5 | 12.5 |
|
D-3
|
110 | 120 | 11.5 | 12.5 |
|
D-3
|
110 | 130 | 15 | 16 |
|
D-3
|
120 | 130 | 11.5 | 12.5 |
|
D-1
|
118 | 133 | 9 | 10 |
|
D-1
|
120 | 130 | 13.5 | 14.5 |
|
D-1
|
120 | 140 | 13 | 14 |
|
D-3
|
118 | 126 | 13.5 | 14.5 |
|
D-3
|
120 | 130 | 11.5 | 12.5 |
|
D-3
|
120 | 130 | 15 | 16 |
|
D-3
|
125 | 145 | 12 | 13 |
|
D-3
|
125 | 145 | 13 | 14 |
|
D-3
|
130 | 145 | 12 | 13 |
|
D-3
|
135 | 143 | 11.5 | 12.5 |
|
D-3
|
135 | 145 | 11.5 | 12.5 |
|
D-3
|
140 | 150 | 15 | 16 |
|
D-3
|
143 | 151 | 13.5 | 14.5 |
|
D-3
|
150 | 160 | 14.5 | 16 |
|
D-3
|
152 | 160 | 11.5 | 12.5 |
|
D-3
|
160 | 168 | 11.5 | 12.5 |
|
D-3
|
160 | 170 | 11.5 | 12.5 |
|
D-3
|
160 | 170 | 15 | 16 |
|
D-3
|
171 | 179 | 11.5 | 12.5 |
|
D-3
|
171 | 179 | 13.5 | 14.5 |
|
D-3
|
172 | 180 | 11.5 | 12.5 |
|
D-3
|
205 | 215 | 15 | 16 |
|
D-3
|
210 | 225 | 14 | 15 |
|
D-3
|
220 | 250 | 18 | 19 |
|
D-3"
|
1/2 | 3/4 | 3/16 | 0.207 |
|
D-3"
|
1/2 | 7/8 | 1/4 | 0.275 |
|
D-3"
|
3/4 | 1 | 1/4 | 0.275 |
|
D-3"
|
3/4 | 1 | 1/8 | 0.138 |
|
D-3"
|
5/8 | 7/8 | 1/4 | 0.275 |
|
D-3"
|
5/8 | 7/8 | 3/16 | 0.207 |
|
D-3"
|
5/8 | 11/8 | 1/4 | 0.275 |
|
D-3"
|
1 | 11/2 | 1/4 | 0.275 |
|
D-3"
|
1 | 11/2 | 3/8 | 0.413 |
|
D-3"
|
1 | 11/4 | 1/4 | 0.275 |
|
D-3"
|
1 | 13/8 | 1/4 | 0.275 |
|
D-3"
|
1 | 13/8 | 5/16 | 0.344 |
|
D-3"
|
11/2 | 13/4 | 1/4 | 0.275 |
|
D-3"
|
11/2 | 17/8 | 1/4 | 0.275 |
|
D-3"
|
11/2 | 17/8 | 3/16 | 0.207 |
|
D-3"
|
11/2 | 17/8 | 3/8 | 0.413 |
|
D-3"
|
11/2 | 17/8 | 5/16 | 0.344 |
|
D-3"
|
11/2 | 2 | 1/4 | 0.275 |
|
D-3"
|
11/2 | 2 | 3/8 | 0.413 |
|
D-3"
|
11/2 | 2 | 5/16 | 0.344 |
|
D-3"
|
11/2 | 21/8 | 3/8 | 0.413 |
|
D-3"
|
11/4 | 11/2 | 1/4 | 0.275 |
|
D-3"
|
11/4 | 11/2 | 3/16 | 0.207 |
|
D-3"
|
11/4 | 11/2 | 5/16 | 0.344 |
|
D-3"
|
11/4 | 13/4 | 3/8 | 0.413 |
|
D-3"
|
11/4 | 15/8 | 1/4 | 0.275 |
|
D-3"
|
11/4 | 15/8 | 3/16 | 0.207 |
|
D-3"
|
11/4 | 15/8 | 5/16 | 0.344 |
|
D-3"
|
11/4 | 2 | 1/4 | 0.275 |
|
D-3"
|
11/8 | 13/8 | 3/16 | 0.207 |
|
D-3"
|
13/4 | 2 | 1/4 | 0.275 |
|
D-3"
|
13/4 | 21/2 | 7/16 | 0.481 |
|
D-3"
|
13/4 | 21/4 | 1/4 | 0.275 |
|
D-3"
|
13/4 | 21/4 | 3/8 | 0.413 |
|
D-3"
|
13/4 | 21/8 | 1/4 | 0.275 |
|
D-3"
|
13/4 | 21/8 | 3/16 | 0.207 |
|
D-3"
|
13/4 | 21/8 | 3/8 | 0.413 |
|
D-3"
|
13/4 | 21/8 | 5/16 | 0.344 |
|
D-3"
|
13/4 | 21/8 | 25/64 | 0.43 |
|
D-3"
|
13/8 | 13/4 | 5/16 | 0.344 |
|
D-3"
|
13/8 | 15/8 | 1/4 | 0.275 |
|
D-3"
|
13/8 | 17/8 | 3/8 | 0.413 |
|
D-3"
|
13/8 | 2 | 3/8 | 0.413 |
|
D-3"
|
15/8 | 17/8 | 1/4 | 0.275 |
|
D-3"
|
15/8 | 2 | 5/16 | 0.344 |
|
D-3"
|
17/8 | 21/4 | 3/8 | 0.413 |
|
D-3"
|
2 | 21/2 | 3/8 | 0.413 |
|
D-3"
|
2 | 21/2 | 5/16 | 0.344 |
|
D-3"
|
2 | 21/4 | 1/4 | 0.275 |
|
D-3"
|
2 | 23/8 | 3/16 | 0.207 |
|
D-3"
|
2 | 23/8 | 3/8 | 0.207 |
|
D-3"
|
2 | 23/8 | 5/16 | 0.344 |
|
D-3"
|
2 | 25/8 | 1/2 | 0.55 |
|
D-3"
|
2 | 25/8 | 5/16 | 0.344 |
|
D-3"
|
21/2 | 27/8 | 3/8 | 0.413 |
|
D-3"
|
21/2 | 3 | 3/8 | 0.413 |
|
D-3"
|
21/2 | 31/4 | 5/8 | 0.688 |
|
D-3"
|
21/2 | 31/4 | 9/16 | 0.619 |
|
D-3"
|
21/4 | 23/4 | 3/8 | 0.413 |
|
D-3"
|
21/4 | 211/16 | 3/8 | 0.413 |
|
D-3"
|
21/4 | 3 | 1/2 | 0.55 |
|
D-3"
|
23/4 | 31/2 | 5/8 | 0.688 |
|
D-3"
|
23/4 | 31/4 | 3/8 | 0.413 |
|
D-3"
|
23/4 | 31/8 | 3/8 | 0.413 |
|
D-3"
|
25/8 | 3 | 3/8 | 0.413 |
|
D-3"
|
27/8 | 31/4 | 5/16 | 0.344 |
|
D-3"
|
3 | 31/2 | 3/8 | 0.413 |
|
D-3"
|
3 | 35/8 | 1/2 | 0.55 |
|
D-3"
|
31/2 | 4 | 3/8 | 0.413 |
|
D-3"
|
31/4 | 33/4 | 3/8 | 0.413 |
|
D-3"
|
31/4 | 35/8 | 3/8 | 0.413 |
|
D-3"
|
31/4 | 4 | 5/8 | 0.688 |
|
D-3"
|
33/8 | 33/4 | 5/16 | 0.344 |
|
D-3"
|
37/8 | 41/4 | 5/16 | 0.344 |
|
D-3"
|
4 | 41/2 | 3/8 | 0.413 |
|
D-3"
|
4 | 43/4 | 9/16 | 0.619 |
|
D-3"
|
4 | 45/8 | 3/8 | 0.413 |
|
D-3"
|
4 | 45/8 | 9/16 | 0.619 |
|
D-3"
|
41/2 | 5 | 1/2 | 0.55 |
|
D-3"
|
41/2 | 5 | 3/8 | 0.413 |
|
D-3"
|
41/2 | 5 | 9/16 | 0.619 |
|
D-3"
|
41/2 | 51/8 | 1/2 | 0.55 |
|
D-3"
|
41/4 | 43/4 | 9/16 | 0.619 |
|
D-3"
|
41/4 | 5 | 1/2 | 0.55 |
|
D-3"
|
41/4 | 5 | 9/16 | 0.619 |
|
D-3"
|
43/4 | 51/8 | 3/8 | 0.413 |
|
D-3"
|
5 | 51/2 | 1/2 | 0.55 |
|
D-3"
|
51/2 | 6 | 3/8 | 0.413 |
|
D-3"
|
51/2 | 61/4 | 5/8 | 0.688 |
|
D-3"
|
51/4 | 6 | 5/8 | 0.688 |
|
D-3"
|
61/2 | 7 | 3/8 | 0.413 |
|
D-3"
|
63/4 | 71/4 | 3/8 | 0.413 |
|
D-3"
|
63/4 | 71/4 | 5/8 | 0.688 |
|
D-3"
|
71/2 | 8 | 3/8 | 0.413 |
