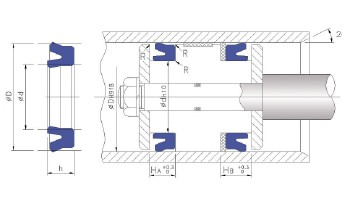

D-1
R ≦ 0.3
油缸内表面应作0.4~3.2 μ mRmax (0.1~0.8 μ mRa)的研磨或抛光
| 项目 | Ød | ØD | h | HA |
|
D-1
|
5 | 15 | 8 | 9 |
|
D-1
|
6 | 15 | 8 | 9 |
|
D-1
|
8 | 14 | 4 | 5 |
|
D-1
|
10 | 16 | 4.5 | 5.5 |
|
D-1
|
11.2 | 19.2 | 5 | 6 |
|
D-1
|
14 | 22 | 5 | 6 |
|
D-1
|
17 | 25 | 4 | 5 |
|
D-1
|
17 | 25 | 10 | 11 |
|
D-1
|
19 | 34 | 8 |
9 |
|
D-1
|
20 | 30 | 5 |
6 |
|
D-1
|
23 | 31 | 5 |
6 |
|
D-1
|
25 | 40 | 12 |
13 |
|
D-1
|
26 | 32 | 5 |
6 |
|
D-1
|
27 | 35 | 5 |
6 |
|
D-1
|
29 | 37 | 5.5 |
6.5 |
|
D-1
|
30 | 40 | 6 |
7 |
|
D-1
|
30 | 40 | 6.5 |
7.5 |
|
D-1
|
30 | 40 | 8 |
9 |
|
D-1
|
30 | 45 | 6 |
7 |
|
D-1
|
30 | 45 | 12 |
13 |
|
D-1
|
33 | 45 | 9 |
10 |
|
D-1
|
35 | 45 | 6 |
7 |
|
D-1
|
35 | 45 | 8 |
9 |
|
D-1
|
35 | 48 | 10 |
11 |
|
D-1
|
35 | 50 | 9 |
10 |
|
D-1
|
35 | 50 | 12 |
13 |
|
D-1
|
35 | 55 | 12 |
13 |
|
D-1
|
36 | 46 | 7 |
8 |
|
D-1
|
37 | 45 | 6 |
7 |
|
D-1
|
40 | 50 | 6 |
7 |
|
D-1
|
40 | 50 | 6.5 |
7.5 |
|
D-1
|
40 | 50 | 8 |
9 |
|
D-1
|
40 | 50 | 9 |
10 |
|
D-1
|
40.8 | 50.8 | 7 |
8 |
|
D-1
|
45 | 55 | 6 |
7 |
|
D-1
|
45 | 56 | 7 |
8 |
|
D-1
|
45 | 60 | 10 |
11 |
|
D-1
|
45 | 65 | 12 |
13 |
|
D-1
|
46 | 56 | 6 |
7 |
|
D-1
|
48 | 63 | 9 |
10 |
|
D-1
|
48 | 63 | 10 |
11 |
|
D-1
|
48 | 63 | 11.5 |
12.5 |
|
D-1
|
50 | 60 | 5 |
6 |
|
D-1
|
50 | 60 | 6 |
7 |
|
D-1
|
50 | 60 | 7 |
8 |
|
D-1
|
50 | 60 | 8 |
9 |
|
D-1
|
50 | 63 | 14 |
15 |
|
D-1
|
50 | 65 | 9 |
10 |
|
D-1
|
50 | 70 | 9 |
10 |
|
D-1
|
50 | 70 | 12 |
13 |
|
D-1
|
53 | 63 | 6 |
7 |
|
D-1
|
53 | 63 | 6.5 |
7.5 |
|
D-1
|
53 | 65 | 14 |
15 |
|
D-1
|
55 | 70 | 9 |
10 |
|
D-1
|
55 | 70 | 10 |
11 |
|
D-1
|
55 | 70 | 12 |
13 |
|
D-1
|
55 | 75 | 12 |
13 |
|
D-1
|
58 | 72 | 12 |
13 |
|
D-1
|
60 | 70 | 6 |
7 |
|
D-1
|
60 | 70 | 8 |
9 |
|
D-1
|
60 | 70 | 12 |
13 |
|
D-1
|
60 | 75 | 13 |
14 |
|
D-1
|
61 | 71 | 6 |
7 |
|
D-1
|
64 | 80 | 12 |
13 |
|
D-1
|
65 | 75 | 6 |
7 |
|
D-1
|
65 | 80 | 10 |
11 |
|
D-1
|
70 | 80 | 6 |
7 |
|
D-1
|
70 | 80 | 8 |
9 |
|
D-1
|
70 | 86 | 12 |
13 |
|
D-1
|
71 | 80 | 6.5 |
7.5 |
|
D-1
|
73 | 85 | 14 |
15 |
|
D-1
|
75 | 88 | 9.5 |
10.5 |
|
D-1
|
75 | 90 | 9 |
10 |
|
D-1
|
75 | 90 | 10 |
11 |
|
D-1
|
75 | 100 | 18 |
19 |
|
D-1
|
78 | 90 | 14 |
15 |
|
D-1
|
80 | 90 | 6 |
7 |
|
D-1
|
80 | 95 | 9 |
10 |
|
D-1
|
80 | 100 | 14.5 |
15.5 |
| 项目 | Ød | ØD | h | HA |
|
D-1
|
83 | 95 | 14 | 15 |
|
D-1
|
85 | 100 | 9 | 10 |
|
D-1
|
85 | 100 | 9.5 | 10.5 |
|
D-1
|
89 | 105 | 18 | 19 |
|
D-1
|
90 | 105 | 9 | 10 |
|
D-1
|
94 | 110 | 18 | 19 |
|
D-1
|
95 | 110 | 9 | 10 |
|
D-1
|
98 | 110 | 14 | 15 |
|
D-1
|
100 | 115 | 9 | 10 |
|
D-1
|
100 | 120 | 12 | 13 |
|
D-1
|
100 | 120 | 13 | 14 |
|
D-1
|
100 | 130 | 12 | 13 |
|
D-1
|
104 | 120 | 18 | 19 |
|
D-1
|
106 | 120 | 8.5 | 9.5 |
|
D-1
|
108 | 120 | 14 | 15 |
|
D-1
|
109 | 125 | 18 | 19 |
|
D-1
|
110 | 120 | 6 | 7 |
|
D-1
|
110 | 125 | 9 | 10 |
|
D-1
|
110 | 125 | 10 | 11 |
|
D-1
|
110 | 130 | 12 | 13 |
|
D-1
|
112 | 125 | 9 | 10 |
|
D-1
|
115 | 130 | 9 | 10 |
|
D-1
|
118 | 133 | 9 | 10 |
|
D-1
|
120 | 133 | 13.5 | 14.5 |
|
D-1
|
120 | 140 | 13 | 14 |
|
D-1
|
124 | 140 | 18 | 19 |
|
D-1
|
125 | 140 | 9 | 10 |
|
D-1
|
128 | 140 | 14 | 15 |
|
D-1
|
130 | 150 | 15 | 16 |
|
D-1
|
135 | 150 | 9 | 10 |
|
D-1
|
135 | 160 | 19 | 20 |
|
D-1
|
140 | 150 | 7 | 8 |
|
D-1
|
140 | 160 | 13 | 14 |
|
D-1
|
145 | 160 | 9 | 10 |
|
D-1
|
148 | 160 | 15.5 | 16.5 |
|
D-1
|
150 | 160 | 12.5 | 13.5 |
|
D-1
|
150 | 170 | 15 | 16 |
|
D-1
|
154 | 170 | 18 | 19 |
|
D-1
|
155 | 170 | 9 | 10 |
|
D-1
|
165 | 180 | 9 | 10 |
|
D-1
|
174 | 190 | 18 | 19 |
|
D-1
|
175 | 200 | 18.2 | 19.2 |
|
D-1
|
190 | 210 | 12 | 13 |
|
D-1
|
195 | 220 | 16 | 17 |
|
D-1
|
200 | 220 | 12 | 13 |
|
D-1
|
204 | 220 | 18 | 19 |
|
D-1
|
215 | 240 | 16 | 17 |
|
D-1
|
220 | 240 | 12 | 13 |
|
D-1
|
225 | 250 | 19 | 20 |
|
D-1
|
230 | 250 | 12 | 13 |
|
D-1
|
230 | 250 | 12.5 | 13.5 |
|
D-1
|
230 | 255 | 22 | 23 |
|
D-1
|
234 | 250 | 18 | 19 |
|
D-1
|
270 | 300 | 19 | 20 |
|
D-1
|
270 | 300 | 24 | 25 |
|
D-1
|
284 | 300 | 18 | 19 |
|
D-1
|
290 | 320 | 19 | 20 |
|
D-1
|
300 | 330 | 19 | 20 |
|
D-1
|
370 | 400 | 22 | 23 |
|
D-1"
|
5/8 | 7/8 | 1/8 | 0.138 |
|
D-1"
|
11/2 | 17/8 | 17/64 | 0.312 |
|
D-1"
|
11/2 | 2 | 3/8 | 0.413 |
|
D-1"
|
11/2 | 21/8 | 3/8 | 0.413 |
|
D-1"
|
11/4 | 13/4 | 3/8 | 0.413 |
|
D-1"
|
11/8 | 13/4 | 1/2 | 0.55 |
|
D-1"
|
15/16 | 13/4 | 3/8 | 0.413 |
|
D-1"
|
21/2 | 31/4 | 1/2 | 0.55 |
|
D-1"
|
23/8 | 3 | 1/2 | 0.55 |
|
D-1"
|
23/8 | 3 | 3/8 | 0.413 |
|
D-1"
|
31/2 | 4 | 3/8 | 0.413 |
|
D-1"
|
33/4 | 41/2 | 1/2 | 0.55 |
|
D-1"
|
4 | 41/2 | 3/8 | 0.413 |
|
D-1"
|
41/2 | 5 | 3/8 | 0.413 |
|
D-1"
|
103/8 | 107/8 | 17/32 | 0.6 |
|
D-1"
|
113/8 | 117/8 | 17/32 | 0.6 |
|
D-1"
|
123/8 | 127/8 | 17/32 | 0.6 |
|
D-1"
|
133/8 | 137/8 | 17/32 | 0.6 |
|
D-1"
|
153/8 | 157/8 | 17/32 | 0.6 |
