D-6

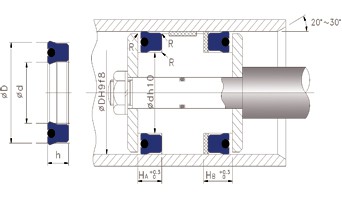

R ≦ 0.3
油缸内表面应作 0.4~3.2 μ mRmax (0.1~0.8 μ mRa)的研磨或抛光
| 项目 | Ød | ØD | h | HA |
|
D-6 |
8 | 16 | 6 | 6.6 |
|
D-6 |
9.53 | 19.05 | 5 | 5.5 |
|
D-6 |
12 | 21 | 5 | 5.5 |
|
D-6 |
13 | 19 | 4 | 4.4 |
|
D-6 |
18 | 30 | 6 | 6.6 |
|
D-6 |
22 | 32 | 8 | 8.8 |
|
D-6 |
22.23 | 28.58 | 6.35 | 6.98 |
|
D-6 |
25.4 | 33.4 | 5.68 | 6.12 |
|
D-6 |
25.4 | 34.93 | 7.95 |
8.73 |
|
D-6 |
28 | 38 | 7.3 | 8 |
|
D-6 |
30 | 40 | 7 | 7.7 |
|
D-6 |
30 | 42 | 7 | 7.7 |
|
D-6 |
31.75 | 41.28 | 6.76 | 7.92 |
|
D-6 |
31.75 | 41.28 | 7.95 | 8.73 |
|
D-6 |
34.92 | 44.45 | 7.95 | 8.73 |
|
D-6 |
38.1 | 50.8 | 6.35 | 6.98 |
|
D-6 |
40 | 48 | 5.7 | 6.3 |
|
D-6 |
40 | 50 | 7.3 | 8 |
|
D-6 |
41.3 | 50.8 | 9.52 | 10.49 |
|
D-6 |
44.45 | 53.97 | 9.52 | 10.49 |
|
D-6 |
47.62 | 57.15 | 9.52 | 10.49 |
|
D-6 |
50 | 65 | 11.4 | 12.5 |
|
D-6 |
50.8 | 63.5 | 6.35 | 6.98 |
|
D-6 |
53.97 | 63.5 | 6.35 | 6.98 |
|
D-6 |
55 | 65 | 10 | 11 |
|
D-6 |
56 | 64 | 8 | 8.8 |
|
D-6 |
57.15 | 66.68 | 9.52 | 10.49 |
|
D-6 |
57.15 | 69.85 | 9.52 | 10.49 |
|
D-6 |
60 | 70 | 6 | 6.6 |
|
D-6 |
60 | 75 | 12 | 13.2 |
|
D-6 |
63.5 | 73.03 | 9.52 | 10.49 |
|
D-6 |
63.5 | 76.2 | 9.52 | 10.49 |
|
D-6 |
63.5 | 82.55 | 15.75 | 17.47 |
|
D-6 |
69.85 | 82.55 | 9.52 | 10.49 |
|
D-6 |
75 | 88 | 13 | 14.5 |
|
D-6 |
75 | 90 | 9 | 9.9 |
|
D-6 |
76.2 | 88.9 | 9.52 | 10.49 |
|
D-6 |
76.2 | 95.25 | 15.75 | 17.47 |
|
D-6 |
80 | 95 | 11.4 | 12.5 |
|
D-6 |
88.9 | 101.6 | 9.52 | 10.49 |
|
D-6 |
90 | 100 | 8 | 8.8 |
|
D-6 |
100 | 115 | 11 | 12 |
|
D-6 |
101.6 | 114.3 | 9.52 | 10.49 |
|
D-6 |
133.35 | 152.4 | 15.75 | 17.47 |
|
D-6 |
158.75 | 177.8 | 15.75 | 17.47 |
|
D-6 |
165 | 177 | 9 | 9.9 |
|
D-6 |
236 | 261 | 19 | 21 |
|
D-6" |
1/2 | 3/4 | 1/4 | 0.275 |
|
D-6" |
1/2 | 3/4 | 1/8 | 0.138 |
|
D-6" |
1/2 | 3/4 | 3/16 | 0.207 |
|
D-6" |
1/2 | 1 | 3/4 | 0.825 |
|
D-6" |
1/4 | 1/2 | 1/4 | 0.275 |
|
D-6" |
1/4 | 1/2 | 1/8 | 0.138 |
|
D-6" |
3/4 | 1 | 1/4 | 0.275 |
|
D-6" |
3/4 | 1 | 1/8 | 0.138 |
|
D-6" |
3/4 | 1 | 3/16 | 0.207 |
|
D-6" |
3/4 | 11/4 | 3/8 | 0.413 |
|
D-6" |
3/8 | 3/4 | 1/4 | 0.275 |
|
D-6" |
3/8 | 5/8 | 1/4 | 0.275 |
|
D-6" |
5/8 | 7/8 | 1/4 | 0.275 |
|
D-6" |
5/8 | 7/8 | 1/8 | 0.138 |
|
D-6" |
5/8 | 7/8 | 3/16 | 0.207 |
|
D-6" |
5/8 | 1 | 1/4 | 0.275 |
|
D-6" |
5/8 | 1 | 3/16 | 0.207 |
|
D-6" |
7/8 | 11/4 | 1/4 | 0.275 |
|
D-6" |
7/8 | 13/8 | 1/8 | 0.138 |
|
D-6" |
7/8 | 13/8 | 3/8 | 0.413 |
|
D-6" |
9/16 | 13/16 | 1/8 | 0.138 |
|
D-6" |
11/16 | 13/16 | 3/8 | 0.413 |
|
D-6" |
13/16 | 11/16 | 1/8 | 0.138 |
|
D-6" |
1 | 11/2 | 1/4 | 0.275 |
|
D-6" |
1 | 11/2 | 3/8 | 0.413 |
|
D-6" |
1 | 11/4 | 1/4 | 0.275 |
|
D-6" |
1 | 11/4 | 1/8 | 0.138 |
|
D-6" |
1 | 11/4 | 3/16 | 0.207 |
|
D-6" |
1 | 13/8 | 1/4 | 0.275 |
|
D-6" |
1 | 13/8 | 3/16 | 0.207 |

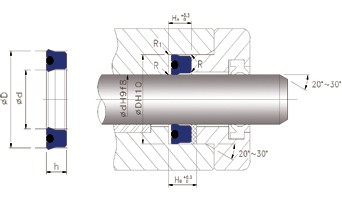

R ≦ 0.3 R1 ≦ 0.5
活塞杆表面应作 0.8~1.6 μ mRmax (0.2~0.4 μ mRa)的抛光
| 项目 | Ød | ØD | h | HA |
|
D-6"
|
1 | 13/8 | 7/16 | 0.481 |
|
D-6"
|
1 | 13/8 | 7/32 | 0.241 |
|
D-6"
|
11/16 | 15/16 | 1/4 | 0.275 |
|
D-6"
|
11/2 | 13/4 | 1/4 | 0.275 |
|
D-6"
|
11/2 | 17/8 | 1/4 | 0.275 |
|
D-6"
|
11/2 | 17/8 | 3/8 | 0.413 |
|
D-6"
|
11/2 | 17/8 | 5/16 | 0.344 |
|
D-6"
|
11/2 | 2 | 1/4 | 0.275 |
|
D-6"
|
11/2 | 2 | 3/8 | 0.413 |
|
D-6"
|
11/2 | 21/8 | 7/16 | 0.481 |
|
D-6"
|
11/4 | 11/2 | 1/4 | 0.275 |
|
D-6"
|
11/4 | 11/2 | 5/8 | 0.688 |
|
D-6"
|
11/4 | 13/4 | 1/4 | 0.275 |
|
D-6"
|
11/4 | 13/4 | 3/8 | 0.413 |
|
D-6"
|
11/4 | 15/8 | 1/4 | 0.275 |
|
D-6"
|
11/4 | 15/8 | 3/16 | 0.207 |
|
D-6"
|
11/4 | 15/8 | 3/8 | 0.413 |
|
D-6"
|
11/4 | 17/8 | 5/16 | 0.344 |
|
D-6"
|
11/4 | 17/8 | 7/16 | 0.481 |
|
D-6"
|
11/4 | 111/16 | 3/8 | 0.413 |
|
D-6"
|
11/4 | 2 | 1/4 | 0.275 |
|
D-6"
|
11/8 | 11/2 | 5/16 | 0.344 |
|
D-6"
|
11/8 | 13/8 | 5/32 | 0.172 |
|
D-6"
|
13/16 | 19/16 | 3/16 | 0.207 |
|
D-6"
|
13/16 | 111/16 | 1/4 | 0.275 |
|
D-6"
|
13/4 | 2 | 1/4 | 0.275 |
|
D-6"
|
13/4 | 21/4 | 1/4 | 0.275 |
|
D-6"
|
13/4 | 21/4 | 3/8 | 0.413 |
|
D-6"
|
13/4 | 21/8 | 1/4 | 0.275 |
|
D-6"
|
13/4 | 23/8 | 7/16 | 0.481 |
|
D-6"
|
13/8 | 13/4 | 3/16 | 0.207 |
|
D-6"
|
13/8 | 13/4 | 3/8 | 0.413 |
|
D-6"
|
13/8 | 15/8 | 1/8 | 0.138 |
|
D-6"
|
13/8 | 17/8 | 3/8 | 0.413 |
|
D-6"
|
13/8 | 111/16 | 5/32 | 0.172 |
|
D-6"
|
13/8 | 2 | 7/16 | 0.481 |
|
D-6"
|
15/16 | 19/16 | 5/32 | 0.172 |
|
D-6"
|
15/8 | 17/8 | 3/8 | 0.413 |
|
D-6"
|
15/8 | 17/8 | 5/32 | 0.172 |
|
D-6"
|
15/8 | 2 | 3/16 | 0.207 |
|
D-6"
|
15/8 | 2 | 5/16 | 0.344 |
|
D-6"
|
2 | 21/2 | 1/4 | 0.275 |
|
D-6"
|
2 | 21/2 | 3/8 | 0.413 |
|
D-6"
|
2 | 23/8 | 3/16 | 0.207 |
|
D-6"
|
2 | 23/8 | 3/8 | 0.413 |
|
D-6"
|
2 | 23/8 | 5/16 | 0.344 |
|
D-6"
|
2 | 25/8 | 9/16 | 0.619 |
|
D-6"
|
2 | 29/16 | 3/8 | 0.413 |
|
D-6"
|
21/2 | 23/4 | 3/8 | 0.413 |
|
D-6"
|
21/2 | 3 | 1/4 | 0.275 |
|
D-6"
|
21/2 | 3 | 3/8 | 0.413 |
|
D-6"
|
21/2 | 31/4 | 9/16 | 0.619 |
|
D-6"
|
21/4 | 21/2 | 1/4 | 0.275 |
|
D-6"
|
21/4 | 23/4 | 1/4 | 0.275 |
|
D-6"
|
21/4 | 23/4 | 3/8 | 0.413 |
|
D-6"
|
21/4 | 23/4 | 9/16 | 0.619 |
|
D-6"
|
21/4 | 25/8 | 1/4 | 0.275 |
|
D-6"
|
21/8 | 21/2 | 3/8 | 0.413 |
|
D-6"
|
23/4 | 31/2 | 5/8 | 0.688 |
|
D-6"
|
23/4 | 31/2 | 9/16 | 0.619 |
|
D-6"
|
25/8 | 3 | 3/8 | 0.413 |
|
D-6"
|
27/8 | 31/2 | 5/16 | 0.344 |
|
D-6"
|
27/8 | 31/4 | 3/16 | 0.207 |
|
D-6"
|
3 | 31/2 | 3/8 | 0.413 |
|
D-6"
|
31/2 | 4 | 1/4 | 0.275 |
|
D-6"
|
33/8 | 33/4 | 3/16 | 0.207 |
|
D-6"
|
33/8 | 35/8 | 1/8 | 0.138 |
|
D-6"
|
37/8 | 41/4 | 3/16 | 0.207 |
|
D-6"
|
4 | 41/2 | 9/16 | 0.619 |
|
D-6"
|
4 | 5 | 3/4 | 0.825 |
|
D-6"
|
41/2 | 51/4 | 5/8 | 0.688 |
|
D-6"
|
5 | 51/2 | 9/16 | 0.619 |
|
D-6"
|
5 | 55/8 | 1/2 | 0.55 |
|
D-6"
|
6 | 7 | 3/4 | 0.825 |
|
D-6"
|
63/4 | 71/4 | 3/8 | 0.413 |
|
D-6"
|
71/4 | 8 | 3/8 | 0.413 |
